Datasheets, technical notes and application notes
All documents as free PDFs – no registration. Every article is stated with R+F article numbers; efficiencies of borosilicate microfibre grades refer to 0.01 µm.
New

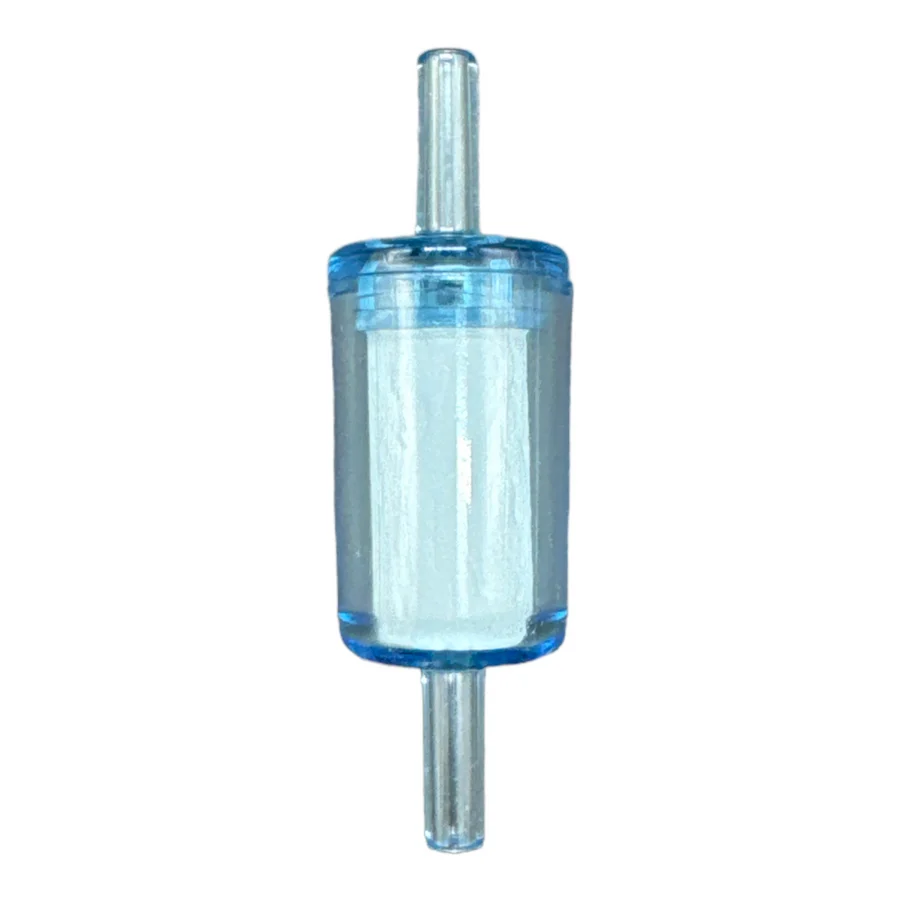

RF-DIF-BN50I – see when the filter is spent
Disposable in-line filter with indicating dye: when red appears on the outside of the element, replace the filter. 99.99 % @ 0.01 µm.
Discover the productProduct Notes
Technical Notes
Application Notes (anonymised projects)
Application NotePDF · ENCNG line filters at 200 barApplication NotePDF · ENKOH electrolysis test bench filtersApplication NotePDF · ENLab hydrogen drying after a PEM electrolyserApplication NotePDF · ENNitrogen filters for an EPC projectApplication NotePDF · ENOxygen purification after electrolysisApplication NotePDF · ENPlastic analyser filter – functional alternative
Datasheets – Housings
RF-H-110PDF · ENCompact stainless steel instrumentation filter · ⅛″ NPT · 340 barRF-H-112PDF · ENCompact stainless steel instrumentation filter · ¼″ NPT · 340 bar · ¼″ drainRF-H-132PDF · EN316L instrumentation filter housing · ½″ NPT · 100 bar · ¼″ NPT drainRF-H-134CCPDF · ENRefillable molecular-sieve / adsorber housing · 316L · ¼″ NPT · 100 bar · 110 ccRF-H-140VPPDF · ENHigh-pressure sample / process filter housing · 316L · ¼″ NPT · 400 barRF-H-142PDF · EN316L filter housing · ½″ NPT · 100 bar · drainable sumpRF-H-150PDF · EN316L filter housing · 1″ NPT · 100 bar · 200 °CRF-H-160PDF · EN316L high-flow filter housing · 1″ NPT · 100 bar · 200 °CRF-H-160HPPDF · EN316L high-pressure filter housing · 1″ NPT · 200 bar · 200 °CRF-H-160-CCPDF · ENActivated carbon vapour-phase adsorber housing · 316L · ½″ NPT · 250 barRF-H-433PDF · ENVacuum-pump exhaust filter housing · 1½″ NPT · 120 °CRF-H-730NPDF · ENNylon instrumentation filter housing · ¼″ NPT · 7 barRF-HG-137PDF · ENGlass-bowl sample / analyser filter housing · 316L · ¼″ NPT · 7 barRF-HIL-705NPDF · ENLow-pressure inline filter · transparent bowl · 7 barRF-DM-148GPDF · ENMesh demister / bubbler assembly · glass bowl · ½″ NPT
Datasheets – Filter Elements
RF-C-25064-MEPDF · ENCoalescing element 25 × 64 mm · borosilicate microfibre · 99.5 % @ 0.01 µmRF-C-FLT486PDF · ENSilica-bonded (CS) coalescing element · 95 % @ 0.01 µm · up to 500 °C (housing limit applies)RF-SS-25178PDF · ENSintered stainless steel element · Ø 25 × 178 mm · cleanableRF-TF-25178-003PDF · ENSintered PTFE element · 25 × 178 mm · 3 µmRF-DIF-BN50PDF · ENDisposable in-line filter · nylon body · borosilicate microfibre · 99.99+ % @ 0.01 µm
Datasheets – Membrane Separators
Housings are supplied with a matching element fitted. Glass microfibre coalescing elements are consumables – in electrolysis gas service we recommend replacement every 3 months.
Need a datasheet that is not listed?
Send us the article number or your operating data – medium, pressure, temperature, flow and connection – and we will send the document or propose a configuration.
