The best filter in the world — in the wrong place
A high-efficiency coalescing filter rated at 99.99% removal efficiency at 0.1 µm is impressive on paper. But install it in the wrong position in your gas system, and it might as well not be there.
Filter placement is one of the most common sources of filtration failure in compressed air and process gas systems. The filter itself works perfectly — it is simply not seeing the contamination it was designed to remove, or it is being overwhelmed by contamination it was never designed to handle.
The correct system layout
For a standard compressed air system with an oil-lubricated compressor, the correct filter sequence is well established:
1. Compressor + aftercooler
Compresses and cools the air. Generates oil aerosol, water condensate, and particulate from compressor wear.
2. Bulk separator + pre-filter
Removes bulk water, large oil slugs, and coarse particulate. Protects the dryer from liquid flooding.
3. Dryer (refrigerated or desiccant)
Removes water vapour to the required dewpoint. Must be protected by the pre-filter to function correctly.

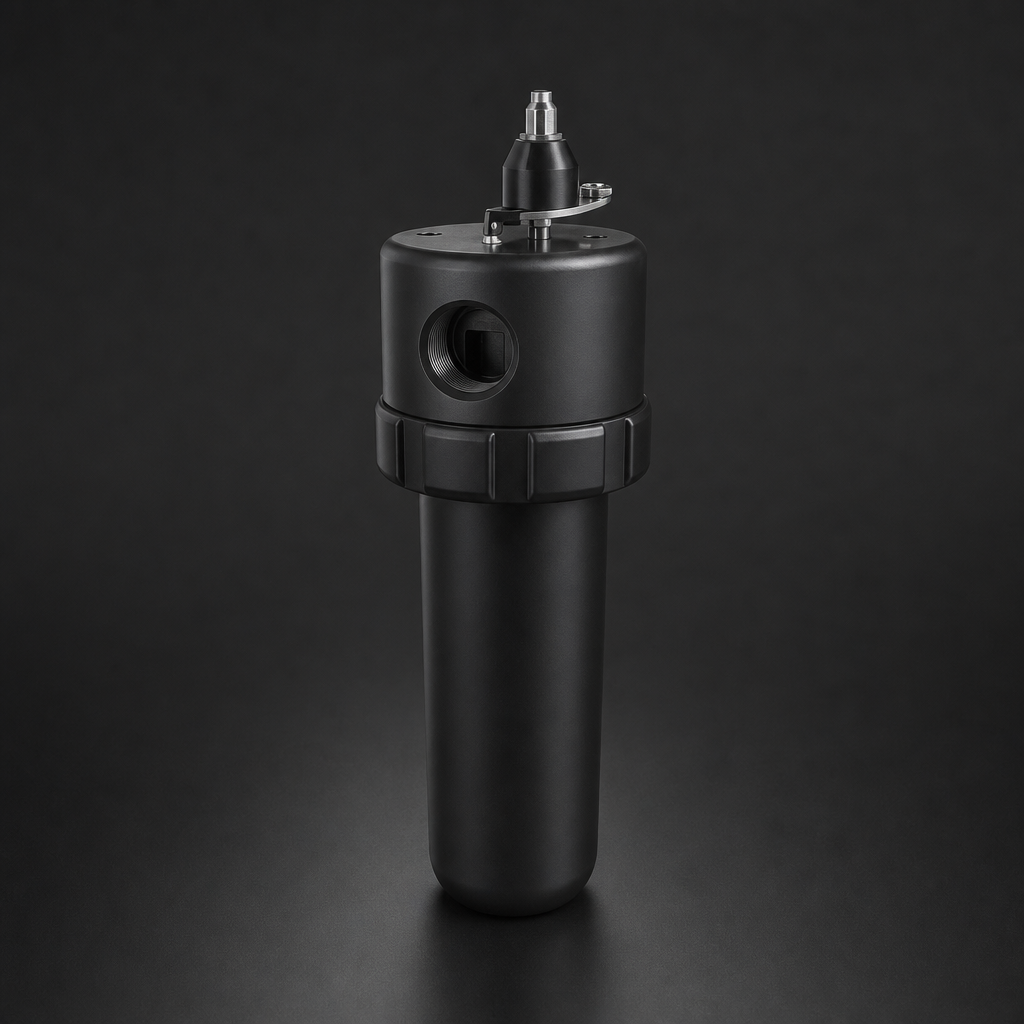

4. HE coalescing filter (after dryer)
Removes sub-micron oil aerosol to < 0.01 mg/m³. Positioned after the dryer for maximum efficiency on dry gas.
Optional 5th stage: activated carbon adsorber
If oil Class 1 total oil is required (aerosol + vapour below 0.01 mg/m³), install an activated carbon adsorber immediately after the coalescing filter. This removes oil vapour that the coalescer cannot capture. View adsorption media.
The five most common placement mistakes
Mistake 1: No pre-filter before the dryer
Without a pre-filter, bulk oil and water reach the dryer. Refrigerated dryers foul. Desiccant dryers suffer irreversible bed contamination. Either way, the dryer fails prematurely and stops delivering the required dewpoint.
Mistake 2: Coalescer before the dryer
Coalescing filters work best on dry gas. Placing the coalescer upstream of the dryer means it handles maximum water loading, reducing its capacity for oil removal and shortening element life. The correct position is always after the dryer.
Mistake 3: Adsorber without coalescer upstream
Activated carbon adsorbers are permanently destroyed by liquid oil. If a coalescing filter is not installed upstream, oil aerosol reaches the carbon bed and blinds it within days. The adsorber becomes useless — and expensive to replace.
Mistake 4: Single filter for everything
Expecting one filter to handle particulate, aerosol, and vapour simultaneously. No single element can do all three. Multi-stage filtration — particulate, coalescer, adsorber — is not over-engineering; it is how filtration works.
Mistake 5: No point-of-use filter
The gas was clean at the treatment plant. But distribution piping introduces rust, scale, thread sealant, and condensate. Sensitive equipment — analysers, pneumatic controls, paint booths — needs a final filter at the point of use.
Process gas systems — different layout, same principles
Process gas systems (natural gas, hydrogen, nitrogen, biogas) follow the same logic, but often at higher pressures and with different contamination profiles:
| System Position | Function | Typical Filter |
|---|---|---|
| Pipeline inlet | Remove pipeline debris, scale, rust | Particulate pre-filter (PF/ST grade) |
| After pressure reduction | Catch condensate from Joule-Thomson cooling | Coalescing filter (HE grade) |
| Before instruments | Protect analysers and sensors | Inline analyser filter (HE/UX grade) |
| Before storage/use | Final protection for valves, regulators, fuel cells | Point-of-use inline filter |
Pressure reduction creates contamination
When gas pressure is reduced (through a regulator or orifice), the gas cools due to the Joule-Thomson effect. This cooling can cause moisture and hydrocarbons to condense — even if the gas was dry upstream. Always consider filtration after pressure reduction stages.
Key Takeaway
Filter placement is as important as filter selection. The correct sequence — pre-filter → dryer → coalescer → adsorber — ensures each stage handles only the contamination it is designed for. Reversing or omitting any stage compromises the entire system.
