Vacuum Pump Exhaust Filters
Aluminium and stainless steel exhaust filters for vacuum pump oil mist removal — from compact laboratory units to large industrial installations handling up to 765 m³/hr.
Aluminium Vacuum Pump Exhaust Filters
Cost-effective oil mist removal for standard vacuum pump exhaust
The aluminium series provides reliable, cost-effective exhaust filtration for non-corrosive vacuum pump applications. Ranging from compact single-element units for small laboratory pumps to large multi-element housings for industrial rotary vane and rotary piston pumps. All models feature tool-free element access for fast, clean maintenance.
Key Features
- Flow range: 5 m³/hr (RF-H-420) to 765 m³/hr (RF-H-456)

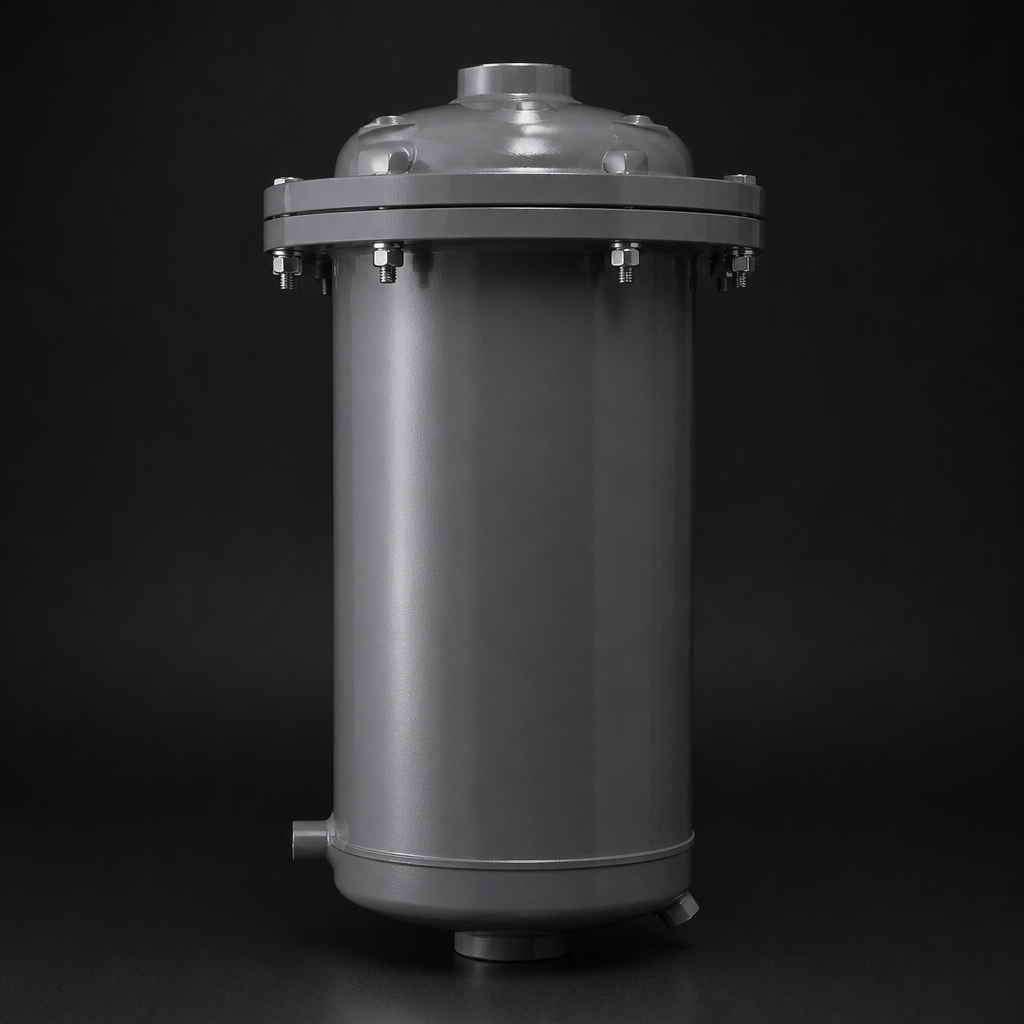

- RF-H-433 and above: integral back-pressure gauge and anti-reintrainment mesh
- Tool-free element access — clean, fast maintenance
- Captured outlet for ducting on all models except RF-H-420
- Oil drain for recovered coalesced oil
- Uses RF-CS coalescing elements (silica binder, 200 °C rated)
Stainless Steel Vacuum Pump Exhaust Filters
Corrosion-resistant exhaust filtration for demanding environments
The stainless steel series provides full 316L construction for corrosive exhaust environments, high-purity applications, and installations where stainless steel is mandated by specification. Identical flow ratings and element compatibility to the aluminium range, with superior chemical resistance and cleanability.
Key Features
- Full 316L stainless steel construction — no aluminium components
- 200 °C maximum — higher than aluminium range (120 °C)
- Same flow ratings and element compatibility as aluminium series
- Superior chemical resistance for corrosive exhaust gases
- Hygienic design — fully cleanable and autoclavable
- Uses RF-CS coalescing elements (silica binder)
Problems These Products Solve
Need help selecting the right filter?
Our technical team can recommend the correct housing, element type, and material configuration for your specific process conditions.
